cgdrawshapes.pro

Graphics, Map Projections


This program draws the entities in a shapefile, containing latitude and longitude polygons or polylines, on a map projection. To draw the shapefile entities automatically, no matter what kind of values the polygon vertices have, and without a map projection, set the AUTODRAW keyword.

It is assumed a map projection command has been issued and is in effect at the time this program is called. Alternatively, you can use a cgMap object, which will set up the map coordinate space and provide the map structure required for plotting in that XY map coordinate space.

If the ATTRVALUES keyword is undefined, all entities are drawn, but only a single value for COLORS, FCOLORS, FILL, LINESTYLE, and THICK is allowed.

Examples

Example using cgMap_Set to set up the map projection space:

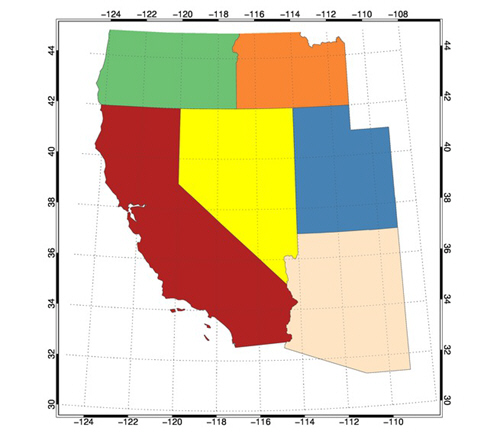

shapefile = Filepath(subdir=['examples','data'], 'states.shp') cgDisplay, 800, 700 cgMap_Set, 40.0, -117.5, /Albers, /IsoTropic, Limit=[30, -125, 50, -108], $ Position=[0.05, 0.05, 0.95, 0.95] cgDrawShapes, shapefile, AttrName='STATE_ABBR', $ AttrValues=['CA', 'OR', 'WA', 'AZ', 'UT', 'ID', 'NV'], Thick=1, $ FColors=['firebrick', 'grn4', 'pur4', 'tan4', 'steel blue', 'org4', 'yellow'], $ Fill = Replicate(1, 7), Colors='charcoal' cgMap_Grid, LatDel = 2.0, LonDel = 2.0, /Box_Axes, Color='charcoal'
Example using cgMap to set up the map projection space:
shapefile = Filepath(subdir=['examples','data'], 'states.shp') cgDisplay, 800, 700, WID=1 mapCoord = Obj_New('cgMap', 'Albers Equal Area', Limit=[30, -125, 50, -108], $ Position=[0.2, 0.05, 0.8, 0.95], CENTER_LATITUDE=40.0, $ CENTER_LONGITUDE=-117, STANDARD_PAR1=40, STANDARD_PAR2=-39) cgDrawShapes, shapefile, AttrName='STATE_ABBR', $ AttrValues=['CA', 'OR', 'WA', 'AZ', 'UT', 'ID', 'NV'], Thick=1, $ FColors=['firebrick', 'grn4', 'pur4', 'tan4', 'steel blue', 'org4', 'yellow'], $ Fill = Replicate(1, 7), Colors='charcoal', MapCoord=mapCoord, /USELIMIT cgMap_Grid, /Box_Axes, Color='charcoal', Map_Structure=mapCoord
Example drawing the states.shp file automatically, without a map projection:
shapefile = Filepath(subdir=['examples','data'], 'states.shp') cgDrawShapes, shapefile, /Autodraw
Example using cgMap to set up the map projection space in a resizeable graphics window:
shapefile = Filepath(subdir=['examples','data'], 'states.shp') cgWindow, WAspect=800.0/700 mapCoord = Obj_New('cgMap', 'Albers Equal Area', LIMIT=[30, -125, 45, -108], $ Position=[0.05, 0.05, 0.95, 0.95], CENTER_LATITUDE=37.5, $ CENTER_LONGITUDE=-117, STANDARD_PAR1=40, STANDARD_PAR2=-39) mapCoord -> AddCmd cgDrawShapes, shapefile, AttrName='STATE_ABBR', $ AttrValues=['CA', 'OR', 'WA', 'AZ', 'UT', 'ID', 'NV'], Thick=1, $ FColors=['firebrick', 'grn4', 'pur4', 'tan4', 'steel blue', 'org4', 'yellow'], $ Fill = Replicate(1, 7), Colors='charcoal', MapCoord=mapCoord, /AddCmd cgMap_Grid, LatDel = 2.0, LonDel = 2.0, /Box_Axes, Color=cgColor('charcoal'), $ Map_Structure=mapCoord, /AddCmd

Author information

Author

FANNING SOFTWARE CONSULTING:

David W. Fanning 1645 Sheely Drive Fort Collins, CO 80526 USA Phone: 970-221-0438 E-mail: david@idlcoyote.com Coyote's Guide to IDL Programming: http://www.idlcoyote.com

Copyright

Copyright (c) 2011-2013, Fanning Software Consulting, Inc.

History

Modification History:

Written by David W. Fanning by modifiying DrawStates to be more general, 13 May 2010. DWF. Added the AUTODRAW keyword for automatic drawing. 15 May 2010. DWF. Added COMPILE_OPT idl2 to make sure all loop variables are longs. 5 July 2010. DWF. Corrected an aspect ratio problem with AUTODRAW and upgraded to Coyote Graphics. 3 January 2011. DWF. Previous method of freeing entity pointers took 10 times times longer than freeing pointers as I go. Also added MinNumVerts keyword to screen out the drawing of small polygons. 6 October 2011. DWF. Wrong string case for discovering particular attributes caused them not to be drawn. 27 Oct 2011. DWF. Added the ability to draw point shapefiles. Changed default color to "opposite". 20 Aug 2012. DWF. Made sure a window is open when the default color is chosen. 29 Aug 2012. DWF. Added a DrawMapCoord keyword so that shapes in a different map projection can be drawn on a map correctly. 29 Nov 2013. DWF. Changed the default value of the USELIMIT keyword to 1. Mostly, because I've been burned too many times to think a default value of 0 makes sense. 29 Nov 2013. DWF.

Routines

cgDrawShapes_DrawEntity, entity, COLOR=string, DRAWMAPCOORD=DRAWMAPCOORD, FCOLOR=string, /FILL, LINESTYLE=integer, MAPCOORD=object, /PROJECTED_XY [, PSYM=integer] [, SYMSIZE=float], THICK=integer

Draw the shape file entity on the map projection.

cgDrawShapes [, shapeFile] [, /ADDCMD] [, /AUTODRAW] [, ATTRNAME=string] [, ATTRVALUES=varies] [, COLORS=string] [, DRAWMAPCOORD=object] [, FCOLORS=string] [, /FILL] [, LINESTYLE=integer] [, MAPCOORD=object] [, MINNUMVERTS=long] [, /PROJECTED_XY] [, PSYM=integer] [, SYMSIZE=float] [, THICK=integer] [, /USELIMIT] [, /WINDOW]

This program draws the entities in a shapefile, containing latitude and longitude points, polygons, polylines, or polypoings on a map projection.

Routine details

top cgDrawShapes_DrawEntity

cgDrawShapes_DrawEntity, entity, COLOR=string, DRAWMAPCOORD=DRAWMAPCOORD, FCOLOR=string, /FILL, LINESTYLE=integer, MAPCOORD=object, /PROJECTED_XY [, PSYM=integer] [, SYMSIZE=float], THICK=integer

Draw the shape file entity on the map projection.

Parameters

entity in required type=structure

The shapefile entity that is read out of the shape file. In should be a polygon or a polyline.

Keywords

COLOR in required type=string

The name of the color used to draw the entity. Used as fill color for filled symbols when drawing points.

DRAWMAPCOORD
FCOLOR in required type=string

The name of the color used to fill the entity. Used if the FILL keyword is set.

FILL in required type=boolean

Set this keyword to fill the entity with a color.

LINESTYLE in required type=integer

Set this keyword to the line style type to draw the entity.

MAPCOORD in required type=object

A map coordinate object (e.g., cgMap). Required to draw the entity on a GCTP map projection set up with MAP_PROJ_INIT.

PROJECTED_XY in required type=boolean default=0

The program assumes the shapefile entities are expressed in latitude and longitude values. If the entiites are expressed in projected XY Cartesian coordinates, then set this value.

PSYM in optional type=integer default=16

When drawing points, the symbol to use. May be any value supported by cgSymbol. The default is a filled circle, filled with Colors.

SYMSIZE in optional type=float default=1.0

The default symbol size. Used only when displaying points.

THICK in required type=integer

The thickness of the line used to draw the entity.

top cgDrawShapes

cgDrawShapes [, shapeFile] [, /ADDCMD] [, /AUTODRAW] [, ATTRNAME=string] [, ATTRVALUES=varies] [, COLORS=string] [, DRAWMAPCOORD=object] [, FCOLORS=string] [, /FILL] [, LINESTYLE=integer] [, MAPCOORD=object] [, MINNUMVERTS=long] [, /PROJECTED_XY] [, PSYM=integer] [, SYMSIZE=float] [, THICK=integer] [, /USELIMIT] [, /WINDOW]

This program draws the entities in a shapefile, containing latitude and longitude points, polygons, polylines, or polypoings on a map projection. Values may also be in projected meter space, if the proper map coordinate object is passed to the program (e.g, via the MapCoord keyword). To draw the shapefile entities automatically, no matter what kind of values the polygon vertices or points have, and without a map projection, set the AUTODRAW keyword.

Parameters

shapeFile in optional type=string

The name of a shapefile. If this variable is not provided, the user will be asked to select a shapefile with the normal file dialogs.

Keywords

ADDCMD in optional type=boolean

Set this keyword to add the command to a cgWindow.

AUTODRAW in optional type=boolean

If set, the shapefile entities are examined to find the X and Y boundaries and a data coordinate space is set up to display the entities automatically. If the shapefile is drawn automatically, the restriction that the shapefile vertices be in latitude and longitude values is removed. Do NOT set this keyword, if you are using the MAPCOORD keyword, too. If no map projection is currently in effect (!X.TYPE NE 3) and no map coordinate object has been provided, this keyword is automatically set.

ATTRNAME in optional type=string

The name of the attribute in the file that you wish to draw. By default, this is set to the first attribute name in the file. If you are unsure of the attribute names in your shapefile, use the Coyote Library program cgShapeInfo to browse the file ahead of time.

ATTRVALUES in optional type=varies

The value of the attribute identified by ATTRNAME. This variable can be a scalar or vector string array identifying a subset of attribute values to be drawn. For example, if ATTRNAME='STATE_NAME', then ATTRVALUE can identify the particular states to draw. For example, ATTRVALUE=['ARIZONA', 'WYOMING', 'OREGON']. By default, the value is "ALL", which means that all of the shape entities identified by ATTRNAME will be drawn.

COLORS in optional type=string default=opposite

The name of the color or colors used to draw the entity. This may be a string array of the same size as ATTRVALUES.

DRAWMAPCOORD in optional type=object

A map coordinate object (e.g., cgMap) that describes the map projection and datum on which the shapes in the shapefile will be drawn. If not supplied, the map coordinate object passed with the mapCoord keyword will be used. Use this keyword only if there is a mismatch in the map projection and datum used in the shapefile and the the map projection and datum that the shape is to be drawn onto.

FCOLORS in optional type=string

The name of the color used to fill the entity. Used if the FILL keyword is set. By default, the same as the COLORS keyword.

FILL in optional type=boolean

Set this keyword to fill the entity with a color.

LINESTYLE in optional type=integer default=0

The normal linestyle keyword index to choose plotting line styles. By default, set to 0 and solid lines. May be a vector of the same size as ATTRVALUES.

MAPCOORD in optional type=object

A map coordinate object (e.g., cgMap) that describes the map projection and datum used in the shapefile. If drawMapCoord is not used, this is also the map coordinate system used for drawing the shape or shapes in the file. This keyword is required to draw the shapes on a GCTP map projection set up with MAP_PROJ_INIT. Note that this could also be a map structure as returned from MAP_PROJ_INIT, but in that case the user is responsible for setting up the XY map coordinate space independently and outside of this program.

MINNUMVERTS in optional type=long default=3

Set this keyword to the minimum number of vertices required to actually draw a polygon. In other words, to to drawn, a polygon must have at least this number of vertices.

PROJECTED_XY in optional type=boolean default=0

The program assumes the shapefile entities are expressed in latitude and longitude values. If the entiites are expressed in projected XY Cartesian coordinates, then set this value.

PSYM in optional type=integer default=16

When drawing points, the symbol to use. May be any value supported by cgSymbol. The default is a filled circle, filled with Colors.

SYMSIZE in optional type=float default=1.0

The default symbol size. Used only when displaying points.

THICK in optional type=integer default=1

The thickness of the line used to draw the entity.

USELIMIT in optional type=boolean default=1

Set this keyword to use the LIMIT as determined from the map coordinate object. This keyword applies only if a valid MapCoord object is passed to the program.

WINDOW in optional type=boolean default=0

Set this keyword to add this command to a current cgWindow program. If a cgWindow doesn't exist, one is created.

File attributes

Modification date: Fri Nov 29 13:35:08 2013
Lines: 655
Docformat: rst rst
